I see my clients lose thousands of dollars every year just because they ignore the small signs of wear on their heavy equipment. It really hurts to see perfectly good machines break down early.
Maximizing undercarriage life requires a mix of daily cleaning, correct track tension, regular lubrication, smart operating habits, and frequent inspections. These five steps prevent premature wear on pins and bushings, saving you from expensive repairs and keeping your bulldozer or excavator running longer on the job site.
Managing a fleet is hard work, but these tips will make your job much easier. If you follow this guide, you will spend less time in the shop and more time making money.
How Does Choosing the Correct Track Shoe Width for My Job Site Terrain Impact My Part Life?
Selecting the wrong track shoe width is a mistake I see way too often in this industry. I always tell my buyers that picking shoes that are too wide for hard ground is like wearing oversized shoes to run a marathon.
Choosing the right track shoe width balances the machine's weight and the ground's hardness. If the shoe is too wide for rocky ground, it puts huge stress on the track links and pins. If it is too narrow for soft mud, the machine sinks, making the engine and undercarriage work much harder.
Comparison of Shoe Width vs. Terrain Performance
| Terrain Type | Recommended Shoe Width | Reason | Impact on Longevity |
|---|---|---|---|
| Hard Rock / Demo | Narrow | Reduces bending stress | Prevents cracked links |
| Mixed Soil | Standard | Balanced support | Even wear across rollers |
| Soft Mud / Swamp | Wide | Provides flotation 1 | Prevents motor strain |
Why Is It Vital for Me to Perform a "Pin and Bushing Turn" at the Optimal Time?
I have seen many owners wait until their tracks are literally falling apart before they do anything. By then, it is usually too late to save the parts. I always explain that a "turn" is like flipping your mattress to make it last longer.
A pin and bushing turn involves rotating the internal wear parts of the track chain 180 degrees. Doing this at the right time can double the life of your track chain and prevent you from needing a full replacement too early.
Pin and Bushing Maintenance Strategy
| Maintenance Stage | Action Required | Expected Result |
|---|---|---|
| 0% - 50% Wear | Regular Visual Inspection | Establish wear baseline |
| 75% - 85% Wear | Pin and Bushing Turn | Doubles track chain life |
| 100% Wear | Full Chain Replacement 2 | High cost, necessary for safety |
How Can I Ensure That My Drive Sprockets and Track Chains Are Wearing at a Synchronized Rate?
It drives me crazy when I see a customer put a brand-new track chain on a set of old, sharp sprockets. I tell them it’s like putting new silk socks into a pair of shoes filled with broken glass.
To ensure synchronized wear, always inspect sprockets and chains together and replace them as a set whenever possible. A worn sprocket 3 has a different "pitch" than a new chain. This mismatch causes the parts to grind against each other, leading to extremely fast wear on both components.
Signs of Mismatched Wear
| Symptom | Cause | Result |
|---|---|---|
| Clicking sound | Chain pitch is longer than sprocket pitch | Bushing damage |
| Polished tooth tips | Sprocket is "climbing" the bushings | Rapid sprocket wear |
| Excessive heat | High friction from misalignment | Seal failure 4 in rollers |
What Daily Cleaning Routines Can I Implement to Prevent Abrasive Soil from Damaging My Seals?
A shovel is your undercarriage's best friend. Leaving mud to dry in the tracks is a recipe for disaster.

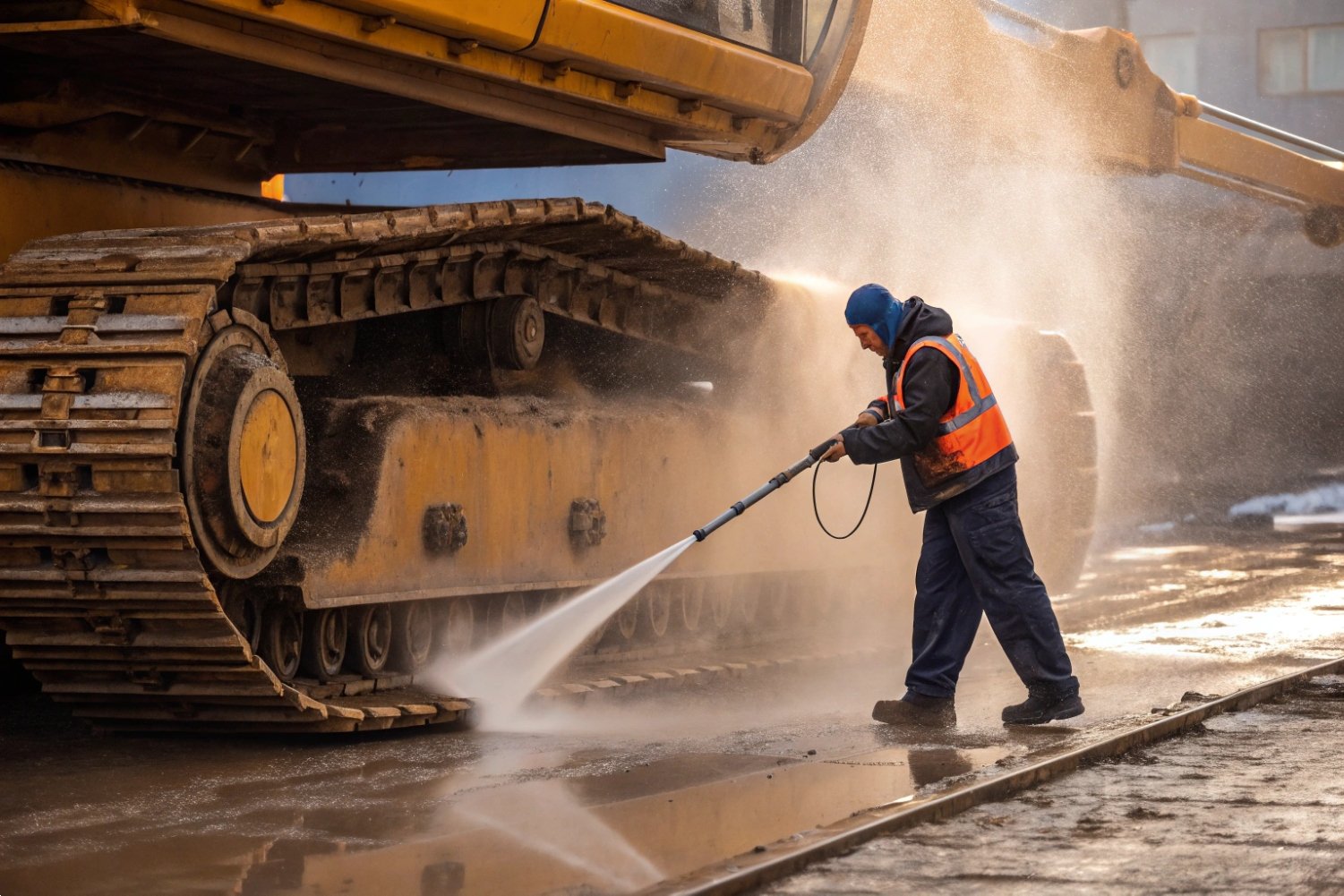

A daily cleaning routine involves using a shovel or pressure washer to remove mud, rocks, and debris from the undercarriage. This prevents "packing," which happens when dried mud fills the gaps between parts. Packing creates immense tension and grinds down the metal seals 5 on your rollers and idlers.
Daily Maintenance Impact on Component Life
- Clear Debris: Use a bar or shovel to remove large rocks and packed mud.
- Check for Leaks: Look for wet spots on the rollers that might indicate a broken seal.
- Inspect Hardware: Quickly check for any loose bolts on the track shoes.
- Visual Check: Ensure the tracks aren't getting too tight due to mud buildup.
How Do I Maintain Proper Track Tension?
Proper track tension is crucial to prolonging the life of your undercarriage. Too tight and it wears out faster; too loose, and it can lead to excessive slack, making the undercarriage work harder than it needs to.
Maintaining the correct tension ensures smooth operation and prevents premature wear on critical components like the sprocket and idlers. Regularly inspect the tension using a tension gauge 6 and adjust when necessary.
As a specialist in heavy machinery maintenance 7, I recommend using ultrasonic tools 8 for precise measurements. For those performing a turn, a track press 9 is indispensable for safety. Understanding industrial metallurgy 10 helps in recognizing how different ground conditions affect metal fatigue.
Conclusion
By managing track tension, choosing the right shoes, cleaning daily, and watching wear patterns, you can significantly extend your undercarriage life. These simple habits save money and prevent big headaches.
