Key Takeaways

• The excavator idler is a foundational component of the undercarriage, responsible for guiding the track and maintaining proper tension. Its failure can precipitate a cascade of costly damages across the entire system.
• Operators and technicians must be vigilant for five primary indicators of impending idler failure: abnormal wear patterns on the running surface, unusual noises like grinding or squealing, oil leaks signaling seal failure, excessive wobble or lateral play, and persistent difficulty in maintaining track tension.
• Ignoring these signs leads not only to expensive repairs but also to significant operational downtime and severe safety hazards, including the potential for track dislodgement, which can cause a machine to become dangerously unstable.
• A philosophy of proactive maintenance, encompassing daily visual inspections, regular cleaning of the undercarriage, and adherence to scheduled service intervals, is far more cost-effective than a reactive approach to repairs.
• When replacement is necessary, the decision between OEM and high-quality aftermarket parts, such as a durable china excavator idler wheel, involves a careful consideration of material science, manufacturing processes like induction hardening, and long-term value over initial cost. A comprehensive understanding of these factors empowers owners to make the most economically sound decision for their fleet.

Table of Contents

• The Unsung Hero of Your Undercarriage: A Deep Examination of the Excavator Idler
• Understanding the Anatomy and Function of the Excavator Idler Assembly
• The Economic and Safety Imperative of Idler Health
• The 5 Critical Signs of Excavator Idler Failure
  • Sign 1: Abnormal and Uneven Wear Patterns
  • Sign 2: The Sound of Trouble: Grinding, Squealing, and Popping Noises
  • Sign 3: Leaking Oil and Compromised Seals
  • Sign 4: Excessive Wobble, Vibration, and Play
  • Sign 5: Persistent Track Tensioning Issues
• Proactive Maintenance: A Philosophy of Prevention
• The Repair vs. Replacement Dilemma
• The Materials Science of a Durable Excavator Idler Wheel
• Frequently Asked Questions (FAQ)
• References

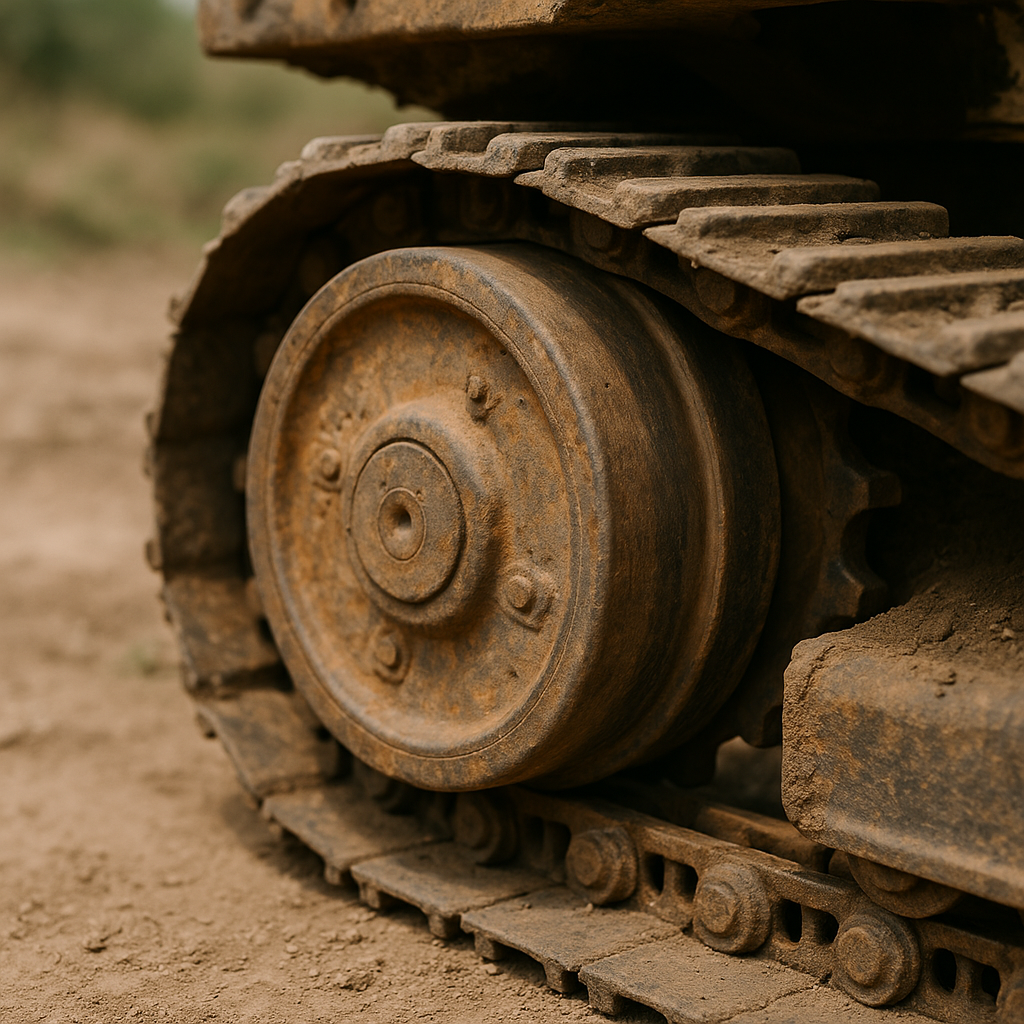

The Unsung Hero of Your Undercarriage: A Deep Examination of the Excavator Idler

In the complex and powerful world of heavy machinery, the excavator stands as a titan of earthmoving, a testament to human ingenuity in shaping the physical world. Yet, for all its hydraulic might and sophisticated controls, its ability to navigate the demanding terrains of a construction site rests upon a system of components that, while rugged, demand our careful attention. We often focus on the engine’s roar or the bucket’s bite, but the machine’s very mobility, its capacity for productive work, is grounded in the undercarriage. Within this ecosystem of steel, the excavator idler plays a role analogous to a coxswain in a rowing shell—it does not provide the propulsive force, but without its guidance, steering, and tensioning, the entire effort would devolve into chaos. It is the silent partner to the sprocket, guiding the immense weight and force of the track chain on its return journey, ensuring the machine moves with purpose and stability. To neglect the health of the excavator idler is to invite not just inefficiency, but catastrophic failure, turning a profit-generating asset into a stationary monument to overlooked maintenance. Understanding its function, recognizing the subtle language of its decline, and responding with informed action are not merely technical tasks; they represent a fundamental aspect of responsible and profitable equipment stewardship in 2025.

Understanding the Anatomy and Function of the Excavator Idler Assembly

Before we can diagnose illness, we must first understand the healthy body. The term ‘excavator idler’ often refers to the prominent wheel at the front or rear of the track frame, opposite the drive sprocket. However, it is more accurately an excavator idler assembly, a sophisticated system of cooperating parts, each with a specific and vital role. To appreciate the signs of failure, we must first develop a fluency in its composition. The assembly is not a simple, solid wheel. It is a carefully engineered mechanism designed to withstand immense forces, both static and dynamic, while rotating smoothly for thousands of hours. Its primary functions are twofold: to guide the track chain into the track rollers and to provide a mounting point for the track tensioning system, often a large recoil spring and hydraulic cylinder that pushes the idler forward to take up slack. Thinking of it as a single part is a common oversimplification. A more accurate mental model is that of a specialized wheel hub assembly on a heavy-duty vehicle, designed for the unique rigors of a tracked machine. Each component’s integrity is linked to the others; the failure of one small part, like a seal, can initiate a chain reaction that destroys the entire assembly.

The Core Components and Their Symbiotic Relationship

Let us dissect this assembly to appreciate its internal complexity. The most visible part is the idler wheel itself, a heavy casting of steel with a precisely machined running surface or tread. This surface is the direct point of contact with the track chain’s links. Its profile must be perfectly shaped to mate with the links, guiding them without causing undue wear. Inside the hub of this wheel lies a world of precision engineering. A central shaft or axle provides the stationary mounting point to the yoke and track frame. The wheel rotates around this shaft not on a simple bushing, but on a set of robust bearings, typically tapered roller bearings or duo-cone bronze bearings, designed to handle both radial loads (the weight of the machine) and axial loads (the side-to-side forces during turning). These bearings live in a sealed bath of heavy oil, protected from the brutal external environment by a system of seals, most notably the duo-cone seal. This seal is a marvel of engineering in itself, consisting of two hardened steel rings and two rubber toric rings that create a perfect metal-to-metal seal, keeping lubrication in and abrasive materials like dirt, sand, and water out. The entire assembly is held together by various collars, plates, and bolts. The failure of any of these elements compromises the whole. A worn tread on the wheel affects the track. A failed bearing causes heat and seizure. A compromised seal leads to lubricant loss and rapid bearing destruction. They are not independent parts but a symbiotic system.

The Economic and Safety Imperative of Idler Health

The conversation about machinery maintenance often gravitates toward cost, and for good reason. In the competitive landscape of construction and earthmoving, operational efficiency is paramount. A single excavator idler failure can trigger a financial hemorrhage that extends far beyond the cost of the replacement part itself. The undercarriage of an excavator can account for up to 50% of the machine’s total maintenance costs over its lifetime (Caterpillar, 2019). The idler is a keystone component in this system. When it fails, it rarely does so in isolation. A wobbling or worn idler places abnormal stress on every other component it touches. It can scallop the inside of track links, accelerate wear on track roller flanges, and place immense side loads on the drive sprocket. A complete failure, such as a bearing seizure, can cause the track to de-track, or “throw a track.” This is not a minor inconvenience. It is a major repair job that requires specialized tools and multiple personnel, often in a difficult field environment. The machine is rendered immobile, halting all work it was scheduled to perform. This unplanned downtime creates a ripple effect, potentially delaying entire projects and incurring contractual penalties. The cost of a new excavator idler assembly might be a few thousand dollars, but the cost of the downtime and the collateral damage to other undercarriage parts can easily be five to ten times that amount. This economic reality transforms idler inspection from a mundane chore into a high-stakes financial management strategy.

Beyond the stark numbers on a spreadsheet lies a more profound responsibility: the safety of the operator and those working nearby. A machine’s stability is predicated on the integrity of its undercarriage. The idler and tensioning system are what keep the track belts firmly planted on the ground, especially when operating on uneven surfaces or slopes. A sudden idler failure or track de-tracking event can cause an instantaneous and violent shift in the machine’s center of gravity. On a slope, this can lead to an uncontrolled slide or even a rollover, one of the most dangerous accidents involving heavy equipment. The Occupational Safety and Health Administration (OSHA) consistently identifies incidents involving heavy machinery as a leading cause of fatalities in the construction industry. While we may discuss wear patterns and lubrication, we are fundamentally talking about risk mitigation. A well-maintained excavator idler is a critical element of a safe work environment. The daily walk-around inspection is not just about protecting the investment; it is about protecting human lives. Recognizing a leaking seal or a tell-tale wobble is the first line of defense against a preventable tragedy. Therefore, a deep understanding of idler health is an ethical obligation for any fleet manager, owner, or operator.

The 5 Critical Signs of Excavator Idler Failure

Having established the idler’s mechanical and economic significance, we can now turn our focus to the practical matter of diagnosis. A failing idler communicates its distress through a series of observable signs. Learning to read this language is the key to pre-emptive action. These are not subtle academic points; they are clear, physical warnings that the system is approaching a state of critical failure. We will examine five of the most definitive indicators, moving from the visible evidence on the steel itself to the audible and tactile clues that manifest during operation.

Sign 1: Abnormal and Uneven Wear Patterns

The most direct evidence of an idler’s health, or lack thereof, is written on its running surface. In a perfectly aligned and tensioned system, the idler wheel should wear slowly and evenly across its tread. It is the deviation from this ideal that serves as our first and most important diagnostic clue. Abnormal wear is not just a cosmetic issue; it is a physical record of dysfunctional forces at play within the undercarriage. It tells a story of misalignment, improper tension, or a hostile operating environment. Ignoring this story is like ignoring a persistent pain in your own body—it is a symptom of a deeper problem that will only worsen if left unaddressed.

Decoding the Language of Wear: What Scuffing, Peening, and Flanging Tell You

Let’s become metallurgists for a moment. The steel of the idler face responds to stress in predictable ways. When you see flanging, where the outer edge of the idler tread appears to be rolled over or pushed outward, it is a clear indication that the track frame is misaligned. The track links are not riding in the center of the idler; they are consistently pushing against one side, plastically deforming the steel. This is often a problem with the track roller frame alignment, sometimes called “toe-in” or “toe-out.” Conversely, if you observe wear concentrated only in the very center of the idler tread, while the outer portions remain relatively untouched, it suggests the idler is not properly matched to the track chain or that there is a different kind of alignment issue. Another form of wear is peening or scuffing, where the surface appears hammered or has material pushed around rather than smoothly worn away. This often points to improper track tension—typically too loose—allowing the track links to slap against the idler face with considerable impact force instead of rolling smoothly over it. Each impact is a tiny hammer blow, and millions of these blows deform the surface and can lead to micro-fractures. Understanding these visual cues allows you to diagnose the root cause, not just the symptom. Flanging points to an alignment check, while peening points to a tensioning procedure review.

The Root Causes: Misalignment, Improper Track Tension, and Abrasive Environments

The wear patterns are the ‘what’; the root causes are the ‘why’. As mentioned, misalignment is a primary culprit. The track frames of an excavator must be perfectly parallel. An impact with a large rock, or years of twisting forces, can knock them out of alignment. Specialized laser alignment tools can check this, but pronounced idler wear is often the first sign a problem exists. The second major cause is improper track tension. There is a pervasive myth that tighter is better, but an overly tight track dramatically increases friction and load on all rotating components, including the idler bearings and shaft. It accelerates wear exponentially. Conversely, a track that is too loose, or “saggy,” creates impact loads, as we discussed, and also dramatically increases the risk of de-tracking, especially when operating in reverse or turning. The manufacturer’s specification for track sag is not a suggestion; it is a critical operating parameter. The procedure for checking and adjusting it, using the grease-filled hydraulic adjuster that pushes on the excavator idler yoke, should be a routine part of maintenance. Finally, the operating environment plays an undeniable role. Highly abrasive materials like sharp rock, sand, or corrosive slurry will accelerate wear on all undercarriage parts. While you cannot always change the ground you work on, you can mitigate its effects through more frequent cleaning and inspection. Working consistently on a side slope also creates uneven loads and wear, a factor operators should be mindful of.

A Practical Guide to Visual and Tactile Inspection

Inspection should be a hands-on, sensory experience. Begin with a clean undercarriage; caked-on mud and debris can hide a multitude of sins. With the machine safely parked and secured, conduct a visual sweep of the idler wheels on both sides. Look for the wear patterns we discussed. Compare the idler on the left side to the idler on the right. Are they wearing similarly? A significant difference between the two sides is a red flag for an alignment issue on one track frame. Don’t just look; feel the surface (after ensuring it’s not hot from recent operation). Run your hand over the tread. Can you feel a rolled edge (flanging)? Is the surface rough and pitted (peening)? Next, look at how the track chain sits on the idler. Does it sit squarely in the middle? Or is it shifted to one side? Observe the area where the idler shaft enters the yoke. Is there any sign of polishing or rubbing that would indicate excessive movement? This simple, five-minute examination, performed daily, can provide more valuable information about the health of your undercarriage than any complex diagnostic tool. It is the foundation of preventive maintenance.

The Sound of Trouble: Grinding, Squealing, and Popping Noises

Our senses of sight and touch are powerful diagnostic tools, but so is our sense of hearing. An excavator undercarriage in good health is not silent, but it produces a characteristic set of sounds—the rhythmic clatter of the track plates, the hum of the hydraulics. An experienced operator develops an ear for this mechanical symphony. When a new, discordant sound appears, it is an urgent message from the machine. Unusual noises emanating from the idler area, such as grinding, high-pitched squealing, or intermittent popping, are never normal. They are audible evidence of internal distress, often signaling a problem that has progressed beyond simple surface wear and is now affecting the rotating components within the idler hub.

Translating Mechanical Distress into Audible Warnings

Let’s interpret these sounds. A grinding noise is perhaps the most ominous. It typically signifies a severe lack of lubrication and metal-on-metal contact. This could be the sound of destroyed bearings, where the rollers or balls have disintegrated and are being ground into powder within the hub. It might also be the sound of a foreign object, like a rock, that has become wedged between the rotating idler and the stationary yoke. A high-pitched squeal often points to a different kind of metal-on-metal friction, one that is happening at high speed. This can be a symptom of a bearing that is beginning to seize or a seal that has failed and is allowing the hardened metal seal faces to run dry against each other. An intermittent popping or banging sound can be caused by a broken or cracked bearing race, where the rolling elements are catching on the fractured edge with each revolution. It can also be related to the track itself, such as a broken track pin, but if the sound is localized to the idler, the internal components are the primary suspect. These are not sounds to “wait and see” about. They demand an immediate cessation of work and a thorough investigation.

Pinpointing the Source: Failed Bearings vs. Debris Intrusion

Once an abnormal noise is detected, the challenge is to pinpoint its exact source. Is it the idler, a track roller, or the sprocket? This can sometimes be difficult over the general noise of the machine. One effective technique is to have a second person safely stand well clear of the machine and listen as the operator slowly travels forward and backward a few feet. The location of the sound often becomes more apparent from a distance. To differentiate between internal bearing failure and external debris, a thorough cleaning and visual inspection is the first step. Remove all rocks, dirt, and packed mud from around the idler and yoke. If a wedged rock is found and removed, and the noise disappears upon restarting, you have found your culprit. However, if the area is clean and the noise persists, the problem is almost certainly internal. At this point, you might also notice other corroborating signs, such as excessive heat radiating from the idler hub (do not touch it; use an infrared thermometer if available) or the presence of leaking oil, which we will discuss next. A grinding or squealing noise combined with a leaking seal is a near-certain diagnosis of catastrophic internal failure.

When to Stop Work Immediately: A Risk Assessment

The decision to stop work carries financial consequences, so it is one that operators and supervisors can be reluctant to make. However, with certain idler noises, continuing to operate is an act of profound mechanical and financial negligence. Any persistent grinding or loud squealing sound is a red-line condition. Continuing to run the machine in this state is not just wearing out a part; it is actively destroying it and likely causing damage to the idler shaft and hub. What might have been a candidate for an excavator idler repair or rebuild is quickly turned into a case requiring a complete and much more expensive excavator idler assembly replacement. The risk of seizure is also very high. If the idler bearing seizes completely, the wheel will lock up. The immense force of the track chain will then either shear the idler shaft, destroy the yoke, or, at the very least, cause the track to de-track violently. The cost of stopping work for a few hours to diagnose a noise is minuscule compared to the cost of a catastrophic failure in the field. The rule should be simple: if you hear grinding or squealing from the undercarriage, you stop.

Leaking Oil and Compromised Seals

If the bearings are the heart of the idler, then the lubricating oil is its lifeblood. And just like in a living organism, the loss of this vital fluid is a critical, often fatal, condition. The presence of leaking oil around the idler shaft is one of the most unambiguous signs of a serious problem. It tells you that the sophisticated sealing system designed to protect the bearings has been breached. This is not a minor drip to be ignored. It is a ticking clock, counting down to the complete failure of the idler’s internal rotating group.

The Lifeblood of the Idler: The Role of Lubrication

Inside the sealed cavity of the idler hub, the bearings operate under tremendous pressure. The oil serves multiple functions. It creates a hydrodynamic film that separates the moving metal surfaces, preventing direct contact and friction. It also serves as a coolant, carrying away the heat generated by the rotation and the load. Finally, it helps to flush away any microscopic wear particles that are generated during normal operation. Without this oil, the bearings are left unprotected. Friction skyrockets, temperatures soar, and the hardened steel surfaces begin to weld themselves together and then tear apart, a process known as spalling and galling. The duo-cone seal is the guardian of this system. Its two perfectly mated, lapped metal rings, energized by rubber toric rings, are designed to hold the oil in and keep contaminants out, even while rotating in a slurry of mud and sand. Any sign that it is failing its duty is a cause for immediate concern.

Identifying Leaks: From Subtle Seepage to Obvious Drips

An idler leak may not always present as a dramatic puddle of oil on the ground. The first sign is often more subtle. It might be a wet, oily sheen on the idler yoke or on the side of the idler wheel itself, near the central shaft. This sheen will quickly attract dirt and dust, creating a dark, greasy patch that looks different from the surrounding dry dirt or mud. This is the early stage, a “seepage” that indicates the seal is beginning to lose its integrity. As the failure progresses, this will turn into active drips. You may see a drop of heavy oil forming on the lowest point of the idler hub. If the machine is parked overnight, a small spot or stain may appear on the ground directly beneath the idler. In a severe leak, you might see oil being actively flung from the idler as it rotates. It is tempting to dismiss a minor seep, but this is a mistake. The duo-cone seal works under pressure; once it begins to leak, the process is irreversible and will only accelerate. Furthermore, if oil can get out, it means that abrasive contaminants like water and sand can now get in, which rapidly accelerates the destruction of the bearings.

The Domino Effect: How Seal Failure Leads to Catastrophic Bearing Destruction

The progression from a leaking seal to a destroyed idler follows a predictable and swift path. Step 1: The seal is compromised, perhaps by wear, age, or damage from a foreign object. Step 2: Lubricating oil begins to leak out. The oil level inside the hub drops. Step 3: With less oil, the hydrodynamic film protecting the bearings weakens. Metal-to-metal contact begins to occur, dramatically increasing friction and heat. Step 4: Abrasive external materials (dirt, water, grit) now have an entry path. They mix with the remaining oil, turning it into a highly effective grinding paste. Step 5: The combination of high heat, friction, and abrasive paste rapidly destroys the bearing surfaces. Rollers pit, spall, and disintegrate. The bearing cage collapses. Step 6: The idler seizes or develops massive internal play, leading to the noises and wobbles we have discussed. This entire domino effect can occur in a surprisingly short number of operating hours after the initial leak is spotted. A leaking seal is not a problem to be scheduled for repair “next week.” It is a problem that has already doomed the bearings. The only question is whether you will replace the assembly proactively or wait for it to fail completely during a critical operation.

Excessive Wobble, Vibration, and Play

A healthy excavator idler should be a bastion of stability. While it moves fore and aft with the tensioner, it should exhibit virtually no side-to-side movement or wobble as it rotates. When you begin to feel an unusual vibration through the floor plates of the cab, or when a visual inspection reveals that the idler is wobbling on its axis, you are witnessing a sign of advanced internal wear. This instability is not just a symptom; it is an active agent of destruction, placing immense and unnatural stresses on the entire track system.

The Physics of Instability: Understanding Lateral Movement

The tapered roller bearings or bronze bushings inside the idler are designed to hold the wheel in a precise axial and radial position relative to the shaft. They are meant to constrain its movement to pure rotation. When these bearings become excessively worn, internal clearances increase. The wheel is no longer held tightly. It can now tilt and shift from side to side, a motion we perceive as wobble. Think of a spinning top. When it is spinning fast and is perfectly balanced, it is stable. As it slows down and its balance is disturbed, it begins to wobble. Similarly, a wobbly idler is a sign that the internal components that provide its stability—the bearings—have lost their integrity. This wobble creates a harmonic vibration that can be felt throughout the machine and places a powerful oscillating side-load on the track chain, which it was never designed to handle.

The Pry Bar Test: A Hands-On Method for Diagnosing Looseness

Sometimes a wobble is not obvious during operation but can be detected through a simple physical test. With the machine safely shut down and secured, and the front of the track lifted slightly off the ground using the machine’s own hydraulics (a process that must be done on level, stable ground according to the manufacturer’s safety procedures), you can check for play. Take a long, sturdy pry bar or a piece of timber. Place one end between the idler wheel and the stationary track frame yoke. Now, attempt to pry the idler from side to side. A healthy idler will have almost no perceptible lateral movement. You should feel a solid connection. If you can easily move the idler back and forth, even a fraction of an inch, and you hear a “clunking” sound as you do so, you have confirmed the presence of excessive internal clearance. This is a definitive test for worn-out bearings or a worn shaft. The amount of play is a direct indicator of the severity of the wear. Anything more than a few millimeters of movement is cause for serious concern and warrants scheduling the idler for replacement.

How Idler Instability Destroys Track Links and Rollers

The destructive effect of a wobbly idler extends far beyond the idler assembly itself. Imagine the track chain, a series of interconnected links, being guided by this unstable wheel. As the idler wobbles, it forces the chain to shift from side to side. This action concentrates wear on the sides of the track links and on the flanges of the track rollers below. You will often see a corresponding wear pattern on these components—a scalloping or gouging on the inside edge of the track links and accelerated wear on the roller flanges on one side of the track. The idler is essentially using the track chain as a hammer to beat against the rollers. This not only destroys these expensive components but also significantly increases the likelihood of de-tracking, as the chain is no longer being guided in a straight, stable path. A wobbly idler is a cancer in the undercarriage, spreading damage to surrounding healthy components. Addressing it is not just about saving the idler; it is about saving the entire track group from premature failure.

Persistent Track Tensioning Issues

Our final critical sign relates to the idler’s role as the anchor for the track tensioning system. The ability to set and maintain correct track tension is fundamental to undercarriage life and machine performance. When you find that you are constantly having to re-tension a track, or that a track will not hold its proper sag for more than a few hours of work, it is often a symptom of a problem with the idler, its yoke, or the recoil assembly it is connected to.

The Idler’s Role in the Recoil and Tensioning System

To understand this sign, we must look at the system behind the idler. The excavator idler does not sit in a fixed position. It is mounted on a sliding block or yoke, which is in turn pushed forward by a large, powerful mechanism. This mechanism typically consists of a massive coil spring (the recoil spring) and a hydraulic cylinder filled with grease. When an operator or technician pumps grease into the fitting, a piston extends from the cylinder, pushing the yoke and the entire excavator idler assembly forward, which removes slack and tightens the track. The recoil spring acts as a shock absorber. If a large object like a rock gets caught in the track, the idler can momentarily retract against the spring’s force, preventing damage to the track or final drive. The idler is the literal point of application for all these tensioning and shock-absorbing forces. A failure in this system will manifest as an inability to control track tension.

“Losing Tension”: When the Idler Yoke or Recoil Spring is the Culprit

If a track repeatedly goes slack, there are several possible causes within this system. The most common is a leaking seal in the grease-filled hydraulic adjuster. Grease is slowly leaking out, allowing the piston to retract and the idler to move backward, loosening the track. You should inspect the grease adjuster cylinder for any signs of leaking grease. Another possibility is a failure in the idler yoke itself. The yoke is under immense stress and can develop cracks, or the bores where it connects to the track frame can become worn and elongated. This “slop” in the mounting can make consistent tensioning impossible. A more dramatic, though less common, failure is a broken recoil spring. A broken spring will no longer provide the necessary force to keep the idler pushed forward, leading to a chronically loose track. If you find yourself adding grease to the tensioner every day, there is a leak that needs to be fixed. The problem is not the track stretching; the problem is the tensioner failing to hold its position.

Differentiating Between a Hydraulic Fault and a Mechanical Idler Problem

So, how do you determine if the tension problem is with the hydraulic adjuster or the idler itself? The first step is a careful inspection. Look for leaking grease around the adjuster cylinder; this is the classic sign of a seal failure. Inspect the idler yoke for any visible cracks, especially around welds and pin bores. Next, observe the idler’s behavior. If the track is loose, but the idler itself seems solid with no wobble (as checked with the pry bar test), the problem is more likely to be in the tensioning mechanism (the grease adjuster or spring). However, these issues are often linked. The same shock loads and stresses that can damage an idler can also damage the yoke and recoil spring. Sometimes, a severely worn excavator idler with excessive play can put eccentric loads on the yoke, accelerating its wear. It is crucial to view the idler, yoke, and tensioner as an integrated system. When diagnosing a tensioning problem, all three components must be carefully evaluated to find the true root cause. Simply replacing a leaking adjuster seal without inspecting the idler and yoke for related damage is treating the symptom, not the disease.

Proactive Maintenance: A Philosophy of Prevention

Recognizing the signs of failure is a reactive skill. The true path to maximizing undercarriage life and minimizing operating costs lies in a proactive philosophy. It is the practice of diligent, consistent attention that prevents the signs of failure from appearing in the first place. This approach requires a shift in mindset, from viewing maintenance as a costly interruption to seeing it as a high-return investment. The time spent on daily checks and regular cleaning pays for itself many times over by extending the life of components like the excavator track idler and preventing catastrophic, downtime-inducing failures. As Benjamin Franklin wisely noted, “An ounce of prevention is worth a pound of cure.” In the world of heavy equipment, that pound of cure can cost tens of thousands of dollars.

The Daily Walk-Around: More Than a Glance

The cornerstone of proactive maintenance is the daily walk-around inspection. This should not be a cursory glance as the operator climbs into the cab. It must be a deliberate, methodical procedure. The operator should walk the full circumference of the machine, paying special attention to the undercarriage. Specifically for the idlers, the operator should look for fresh oil leaks, check for any packed debris that needs to be removed, visually assess the track sag, and look at the idler’s wear surfaces for any of the abnormal patterns we have discussed. It is also an opportunity to listen. Before starting the engine, a quiet site can allow the operator to hear things they might miss later. This routine, which takes no more than ten minutes, is the single most effective tool for catching problems early. To make it effective, operators need to be trained on what to look for—not just “look at the idler,” but “look for flanging on the idler tread” and “look for greasy residue near the idler shaft.” This level of specific knowledge empowers them to be the first line of defense.

The Importance of Cleanliness: Removing Packed Debris

One of the simplest yet most impactful maintenance tasks is regular undercarriage cleaning. Mud, clay, rocks, and other debris can pack into the tight spaces around the idlers, rollers, and sprockets. This packed material, often called “packing,” has several destructive effects. First, it adds significant weight and drag to the system, increasing fuel consumption and strain on the drivetrain. Second, it can be highly abrasive, acting like sandpaper that grinds away at components as they move. Third, and most critically for component life, packing prevents the parts from mating correctly. It can lift the track chain off the center of the idler, creating uneven wear. It can also freeze solid in cold weather, effectively turning the undercarriage into a rigid block of steel and dirt, placing immense strain on seals and bearings when the operator tries to move the machine. A regular schedule of cleaning, using a pressure washer or shovel, especially at the end of the workday, prevents these issues. It also makes inspection far more effective, as it is impossible to spot a hairline crack or a small leak under a layer of dried mud.

The Repair vs. Replacement Dilemma

When an excavator idler is diagnosed with a significant issue, the owner is faced with a critical decision: should an attempt be made to repair the existing component, or is it more prudent to replace the entire assembly? This is not a simple choice. It involves a careful calculation of costs, labor, downtime, and the long-term reliability of the outcome. An excavator idler repair can sometimes be a cost-effective solution for minor issues, but for severe damage, it can be a false economy, leading to a repeat failure and more downtime in the near future. Understanding the variables at play is key to making the wisest financial and operational decision.

Assessing the Damage: When is an Excavator Idler Repair Feasible?

The feasibility of a repair depends entirely on the nature and extent of the damage. A common repair procedure involves re-welding and re-machining the wear surface of the idler wheel. This can be effective if the base structure of the wheel is sound and the wear is not excessive. If the tread can be built back up to its original profile and hardness through a proper submerged arc welding process, it can offer a second life to the component. However, this is a specialized task requiring specific equipment and expertise. An excavator idler wheel repair is generally not feasible if the wheel is cracked, severely deformed, or if the internal bearing bores are damaged beyond repair. Similarly, if the internal components—the bearings and seals—have failed, the decision gets more complex. While it is technically possible to press out the old bearings and seals and install new ones, the cost of the specialized labor and the risk of not getting a perfect seal can be high. If a seal leak has allowed abrasives into the hub, it is very likely that the shaft and the inner surface of the hub itself are also damaged, making a simple bearing swap unreliable. A general rule of thumb is that surface wear can sometimes be repaired, but significant internal damage almost always necessitates a full assembly replacement.

The Economics of Rebuilding: Cost-Benefit Analysis

Let’s perform a simple thought experiment. A complete, new, high-quality aftermarket excavator idler assembly might cost $1,500. A full rebuild of your old idler—including disassembly, cleaning, inspection, new bearings, new seals, and labor—might be quoted at $900. On the surface, the rebuild saves $600. However, you must consider the hidden variables. How long will the rebuild take? If it takes two days longer than simply swapping in a new assembly, what is the cost of that additional machine downtime? What is the warranty on the rebuild versus the new part? A reputable new assembly will come with a solid warranty, while a repair may have a much more limited guarantee. Most importantly, what is the risk of a premature failure of the rebuilt unit? If the rebuild fails after 500 hours, while the new assembly would have lasted 4,000 hours, the “savings” have evaporated and been replaced by additional costs for another repair and more downtime. For this reason, for most modern operations where machine availability is paramount, replacing the entire assembly with a reliable new unit is often the most economically sound decision in the long run, even if the upfront cost is higher. The peace of mind and guaranteed performance provided by a new assembly from a trusted supplier of excavator undercarriage parts often outweigh the potential savings of a risky repair.

Sourcing High-Quality Replacement Parts: A Global Perspective

When replacement is the chosen path, the question becomes where to source the new excavator idler. The market offers a spectrum of options, from Original Equipment Manufacturer (OEM) parts available through the machine’s dealer, to a vast global market of aftermarket suppliers. While OEM parts offer a guarantee of perfect fit and quality, they often come with a premium price tag. The aftermarket, on the other hand, offers a wide range of quality and price points. In 2025, sophisticated manufacturing centers, such as those that produce the china excavator idler wheel, have become major players, offering parts that can meet or even exceed OEM specifications at a more competitive price. The key is to partner with a reputable supplier who is transparent about their manufacturing processes, material specifications, and quality control procedures. Look for suppliers with certifications like ISO9001, which indicates a commitment to quality management systems. A good supplier will be able to discuss the specifics of their steel alloys, their heat treatment processes, and their bearing and seal quality. The decision should not be based on price alone, but on the best overall value, which is a combination of price, quality, warranty, and supplier support.

The Materials Science of a Durable Excavator Idler Wheel

Why do some idlers last for 5,000 hours while others fail after 1,000 in the same conditions? The answer often lies deep within the metal itself, in the realm of materials science and metallurgy. The performance of an excavator idler wheel is not accidental; it is the direct result of deliberate choices made during its design and manufacture regarding steel composition and heat treatment. A cursory understanding of these principles can empower a buyer to ask the right questions and differentiate a high-quality component from an inferior one that is merely painted to look the part.

The Quest for Hardness and Toughness: Steel Alloys and Heat Treatment

An idler wheel lives a life of compromise. Its running surface must be extremely hard to resist the abrasive wear from the track chain. However, if the entire wheel were made of a very hard, brittle material, it would be prone to cracking under the first severe shock load. Therefore, the body of the wheel needs to be tough—that is, able to absorb energy and deform slightly without fracturing. The solution to this engineering paradox lies in the use of sophisticated steel alloys and differential heat treatment. The steel itself is typically a high-carbon or, increasingly, a boron-alloyed steel. Boron, even in tiny amounts, significantly increases the “hardenability” of the steel, meaning a deeper and more consistent hardness can be achieved during heat treatment. The goal is to create a component with a very hard outer “case” for wear resistance and a softer, tougher inner “core” for impact strength.

Understanding Induction Hardening and its Impact on Wear Life

The most common method for achieving this dual property is induction hardening. After the idler wheel is cast or forged and machined, the tread or running surface is subjected to this process. The wheel is placed inside a copper coil through which a high-frequency alternating current is passed. This induces eddy currents in the surface of the steel, heating it up very rapidly to a critical temperature (over 1500°F). As soon as it reaches this temperature, the surface is instantly quenched with a spray of water or polymer. This rapid heating and cooling cycle transforms the microstructure of the steel at the surface into martensite, which is extremely hard. The heat does not have time to penetrate deep into the part, so the core remains in its original, softer, tougher state. The depth of this hardened layer is a critical quality parameter. A shallow hardened layer will wear through quickly, exposing the soft core metal to rapid destruction. A high-quality excavator idler wheel will have a deep, uniform hardened case, which is a direct result of a well-controlled manufacturing process. When evaluating a potential supplier, asking about their induction hardening process and specified case depth is a sign of an informed buyer.

The Role of OEM vs. Aftermarket Quality

This brings us back to the OEM versus aftermarket discussion. Historically, the primary advantage of OEM parts was the assurance of proper materials and manufacturing processes. However, the global marketplace has evolved. Top-tier aftermarket manufacturers have invested heavily in the same technologies, from advanced steel alloys to computer-controlled induction hardening and robotic welding. A reputable aftermarket supplier, like those specializing in high-quality excavator idler components, can provide parts that are functionally identical or superior to OEM parts. They are not simply “copying” a part; they are engineering it based on a deep understanding of the materials science involved. The challenge for the buyer is to perform due diligence. Avoid the anonymous, price-driven sellers on online marketplaces. Instead, seek out established suppliers with a track record, technical data sheets, quality certifications, and a willingness to discuss the engineering behind their products. In this way, you can leverage the value of the global aftermarket without compromising on the quality and reliability that your operation depends on.

Frequently Asked Questions (FAQ)

How often should I replace my excavator idlers?There is no fixed hour interval for idler replacement, as wear life is profoundly influenced by application, operating technique, and maintenance practices. Instead of relying on the hour meter, replacement should be condition-based. You should plan for replacement when you observe any of the five critical signs of failure, particularly deep, uneven wear, leaking seals, or confirmed excessive play. Many fleets use regular undercarriage measurement (e.g., with ultrasonic tools) to track the percentage of wear and replace idlers when they reach a predetermined wear limit (e.g., 80% worn), allowing for planned, proactive replacement rather than reactive failure response.Can I run my excavator with a slightly leaking idler seal?While technically possible for a short period, it is extremely inadvisable. A leaking seal means the internal lubrication is being lost and, more importantly, contaminants like dirt and water are getting in. This mixture creates a grinding paste that will rapidly destroy the internal bearings. Continuing to operate with a leak is a guarantee of turning a seal problem into a much more expensive catastrophic bearing failure. The correct action is to stop the machine as soon as is practical and schedule the idler for replacement.

Why is my new idler wearing out much faster on one side of the machine?This is a classic symptom of a track frame alignment issue. The track frames (the long structures that hold the rollers and idlers) must be perfectly parallel. If one is bent or “toed-in” or “toed-out” relative to the other, it will force the track chain to ride against the flange of the idler, causing rapid, one-sided wear. Another cause can be the operator’s technique, such as consistently working on a side-slope in one direction. If the wear is significantly different between the left and right sides, a professional track frame alignment check is highly recommended before you ruin another set of undercarriage parts.What is the difference between a front idler and a rear idler?On most excavators, the idler wheels at the front and rear of the track frame are identical and interchangeable. They both serve the same function of guiding the track. The term “front idler” is commonly used to refer to the idler assembly at the opposite end of the undercarriage from the drive sprocket. In some applications, like forestry or extreme rock work, heavy-duty guards are installed specifically around the front idler to protect it from impact damage.Is it worth paying more for an OEM idler versus an aftermarket one?

This is a value-based decision. OEM parts guarantee a perfect match and high quality, but at a premium price. The modern aftermarket offers a spectrum of quality. A top-tier aftermarket excavator idler from a reputable, certified manufacturer can offer equivalent or even superior quality (e.g., deeper induction hardening, better seals) for a lower price. The risk lies with low-cost, unverified suppliers. The best strategy is to avoid making a decision based solely on the lowest price. Instead, evaluate the overall value offered by a reputable aftermarket supplier, considering their manufacturing standards, material specifications, warranty, and technical support. A high-quality aftermarket part from a trusted source often represents the best economic value.
